| 廠牌 | CALY佳力 |
|---|---|
| 適用線徑範圍(DINmm2/AWG) | 120/250mcm |
| 螺絲孔徑 | 10.5mm |
| 寬度 | 22.0mm |
| 產品認證 |
關閉
父分類名稱 ![佳力無熔絲開關方型端子]( "佳力無熔絲開關方型端子")
父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤
佳力無熔絲開關方型端子
父分類連結
父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤 無熔絲開關方型端子 CB125-10

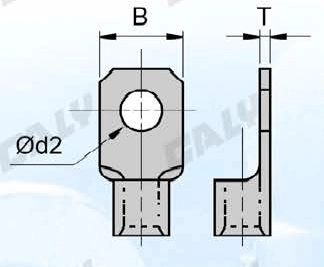

規格圖
規格表
| 型號 | Ød2 | B | T | AWG | DINmm² |
| CB38-5T | 5.3 | 12.0 | 1.8 | 2 | 35 |
| CB38-6T | 6.4 | 12.0 | |||
| CB38-6S | 6.4 | 13.5 | |||
| CB38-8S | 8.4 | 13.5 | |||
| CB38-8 | 8.4 | 16.0 | |||
| CB38-10 | 10.5 | 16.0 | |||
| CB60-8 | 8.4 | 16.0 | 2.0 | 1/0 | 50 |
| CB60-10 | 10.5 | ||||
| CB80-8 | 8.4 | 21.0 | 2.3 | 3/0 | 95 |
| CB80-10 | 10.5 | ||||
| CB80-12 | 13.0 | ||||
| CB100-8 | 8.4 | 22.0 | 2.6 | 4/0 | 120 |
| CB100-10 | 10.5 | ||||
| CB100-12 | 13.0 | ||||
| CB125-8 | 8.4 | 22.0 | 2.8 | 250 | 120 |
| CB125-10 | 10.5 | ||||
| CB125-12 | 13.0 | ||||
| CB150-8S | 8.4 | 22.0 | 3.2 | 250-300 | 150 |
| CB150-10S | 10.5 | ||||
| CB150-12S | 13.0 | ||||
| CB150-8 | 8.4 | 27.0 | 3.2 | 250-300 | 150 |
| CB150-10 | 10.5 | ||||
| CB150-12 | 13.0 | ||||
| CB180-10 | 10.5 | 28.5 | 3.5 | 300-350 mcm | 185 |
| CB180-12 | 13.0 | ||||
| CB180-16 | 17.0 | ||||
| CB200-10 | 10.5 | 33.0 | 4.0 | 400-450 | 240 |
| CB200-12 | 13.0 | ||||
| CB200-16 | 17.0 | ||||
| CB325-12 | 13.0 | 37.0 | 4.5 | 500-600 | 300 |
| CB325-16 | 17.0 | ||||
| CB325-18 | 19.0 | ||||
| CB325-20 | 21.0 |
