| 廠牌 | CALY佳力 |
|---|---|
| 適用線徑範圍(DINmm2/AWG) | 2.50/14 |
| 長度 | 18mm |
| 針端長度 | N/A |
| 產品認證 |
關閉
父分類名稱 ![佳力歐式端子]( "佳力歐式端子")
父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤
佳力歐式端子
父分類連結
父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤 歐式端子 CN2.5-18

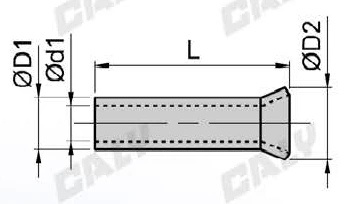

規格圖
規格表
| 型號 | WIRE RANGE mm² (AWG) | L | Ød1 | ØD1 | ØD2 |
| CN0.5-6 | 0.5 | 6 | 1.0 | 1.3 | 2.1 |
| CN0.5-8 | 8 | ||||
| CN0.5-10 | 10 | ||||
| CN0.75-6 | 0.75 | 6 | 1.2 | 1.5 | 2.3 |
| CN0.75-8 | 8 | ||||
| CN0.75-10 | 10 | ||||
| CN1.0-6 | 1.00 | 6 | 1.4 | 1.7 | 2.5 |
| CN1.0-8 | 8 | ||||
| CN1.0-10 | 10 | ||||
| CN1.0-12 | 12 | ||||
| CN1.5-7 | 1.50 | 7 | 1.7 | 2.0 | 2.8 |
| CN1.5-8 | 8 | ||||
| CN1.5-10 | 10 | ||||
| CN1.5-12 | 12 | ||||
| CN2.5-7 | 2.50 | 7 | 2.2 | 2.5 | 3.4 |
| CN2.5-8 | 8 | ||||
| CN2.5-10 | 10 | ||||
| CN2.5-12 | 12 | ||||
| CN2.5-18 | 18 | ||||
| CN4-8 | 4.00 | 8 | 2.8 | 3.2 | 4.0 |
| CN4-9 | 9 | ||||
| CN4-10 | 10 | ||||
| CN4-12 | 12 | ||||
| CN4-15 | 15 | ||||
| CN4-18 | 18 | ||||
| CN6-10 | 6.00 | 10 | 3.5 | 3.9 | 4.7 |
| CN6-12 | 12 | ||||
| CN6-15 | 15 | ||||
| CN6-18 | 18 | ||||
| CN10-12 | 10.00 | 12 | 4.5 | 4.9 | 5.8 |
| CN10-15 | 15 | ||||
| CN10-18 | 18 | ||||
| CN16-12 | 16.00 | 12 | 5.8 | 6.2 | 7.5 |
| CN16-15 | 15 | ||||
| CN16-18 | 18 | ||||
| CN25-15 | 25.00 | 15 | 7.3 | 7.7 | 9.5 |
| CN25-16 | 16 | ||||
| CN25-18 | 18 | ||||
| CN25-20 | 20 | ||||
| CN25-22 | 22 | ||||
| CN35-16 | 35.00 | 16 | 8.3 | 8.7 | 11.0 |
| CN35-18 | 18 | ||||
| CN35-20 | 20 | ||||
| CN35-25 | 25 | ||||
| CN50-18 | 50.00 | 18 | 10.3 | 10.9 | 13.0 |
| CN50-20 | 20 | ||||
| CN50-22 | 22 | ||||
| CN50-25 | 25 | ||||
| CN70-22 | 70.00 | 22 | 13.5 | 14.3 | 15.3 |
| CN70-25 | 25 | ||||
| CN70-32 | 32 | ||||
| CN95-25 | 95.00 | 25 | 14.7 | 15.5 | 16.6 |
| CN95-32 | 32 | ||||
| CN120-30 | 120.00 | 30 | 16.7 | 17.6 | 18.6 |
| CN120-32 | 32 | ||||
| CN120-34 | 34 | ||||
| CN150-32 | 150 | 32 | 19.5 | 20.5 | 21.5 |
| CN150-38 | 38 |
