| 廠牌 | CALY佳力 |
|---|---|
| 適用線徑範圍(DINmm2/AWG) | 8 |
| 螺絲孔徑 | 8.4mm |
| 寬度 | 15.5mm |
| 長度 | 28.7mm |
| 產品認證 |
關閉
父分類名稱 ![佳力旗型端子]( "佳力旗型端子")
父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤
佳力旗型端子
父分類連結
父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤 旗型端子 FG8-8

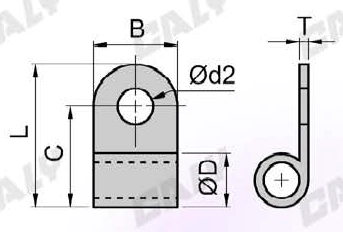

規格圖
規格表
| 型號 | L | B | F | ØD | Ød2 | t | AWG |
| FG1.25-5 | 16.2 | 9.6 | 11.4 | 3.3 | 5.3 | 0.8 | 22-18 |
| FG2-5 | 16.2 | 9.6 | 11.4 | 4.0 | 5.3 | 0.8 | 16-14 |
| FG2-6 | 6.4 | ||||||
| FG5.5-5 | 17.7 | 9.6 | 13.2 | 5.5 | 5.3 | 1.0 | 12-10 |
| FG5.5-6 | 6.4 | ||||||
| FG8-5 | 23.1 | 12.7 | 16.7 | 7.1 | 5.3 | 1.2 | 8 |
| FG8-6 | 23.1 | 12.7 | 16.7 | 6.4 | |||
| FG8-8 | 28.7 | 15.5 | 20.5 | 8.4 | |||
| FG14-5 | 24.9 | 12.7 | 18.5 | 9.0 | 5.3 | 1.5 | 6 |
| FG14-6 | 24.9 | 12.7 | 18.5 | 6.4 | |||
| FG14-8 | 30.5 | 16.0 | 22.6 | 8.4 | |||
| FG22-5 | 28.2 | 14.0 | 21.0 | 11.4 | 5.3 | 1.8 | 4 |
| FG22-6 | 28.2 | 14.0 | 21.0 | 6.4 | |||
| FG22-8 | 34.0 | 17.5 | 24.9 | 8.4 | |||
| FG22-10 | 34.0 | 17.5 | 24.9 | 10.5 | |||
| FG38-6 | 36.0 | 18.3 | 26.6 | 13.3 | 6.4 | 1.8 | 2 |
| FG38-8 | 8.4 | ||||||
| FG38-10 | 10.5 | ||||||
| FG60-6 | 43.9 | 22.3 | 33.0 | 15.4 | 6.4 | 2.0 | 1/0 |
| FG60-8 | 8.4 | ||||||
| FG60-10 | 10.5 | ||||||
| FG70-8 | 46.7 | 23.9 | 35.0 | 17.5 | 8.4 | 2.0 | 2/0 |
| FG70-10 | 10.5 | ||||||
| FG70-12 | 13.0 | ||||||
| FG80-10 | 50.8 | 27.0 | 37.0 | 19.4 | 10.5 | 2.3 | 3/0 |
| FG80-12 | 13.0 | ||||||
| FG100-10 | 53.0 | 28.5 | 38.7 | 22.0 | 10.5 | 2.6 | 4/0 |
| FG100-12 | 13.0 |
