C51133

點擊快速註冊/登入會員
查看最新優惠價格

數量	標準單價	出貨日
-	-	-
-	-	-
-	-	-
-	-	-

規格

廠牌	CALY佳力
適用線徑範圍(DINmm2/AWG)	2.5-4/14-12
螺絲孔徑	8.4mm
寬度	15.0mm
產品認證

商品規格資料

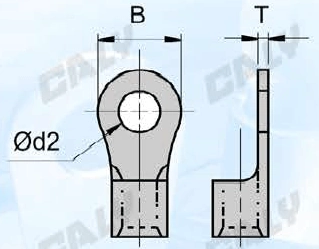

規格圖

佳力圓形端子

規格表

型號	Ød2	B	T	AWG	DINmm²
R0.5-2	2.2	5.2	0.5	26-22	0.14-0.36
R0.5-3	3.2	5.2
R0.5-4	4.3	6.6
R0.5-5	5.3	8.0
R1.25-3S	3.2	5.5	0.8	22-18	0.5-1.0
R1.25-3	3.7	5.5
R1.25-3M	3.7	6.6
R1.25-4M	4.3	6.6
R1.25-4	4.3	8.0
R1.25-5	5.3	8.0
R1.25-6	6.4	11.6
R1.25-8	8.4	11.6
R1.25-10	10.5	13.6
R1.25-12	13.0	19.0
R2-3S	3.2	5.5	0.8	16-14	1.5-2.5
R2-3	3.7	8.5
R2-3M	3.7	6.6
R2-4M	4.3	6.6
R2-4	4.3	8.5
R2-5	5.3	9.5
R2-6	6.4	11.6
R2-8	8.4	11.6
R2-10	10.5	13.6
R2-12	13.0	19.0
R3.5-3S	3.7	7.0	1.0	14-12	2.5-4
R3.5-4S	4.3	7.0
R3.5-4	4.3	8.0
R3.5-5	5.3	8.0
R3.5-6	6.4	12.0
R3.5-8	8.4	15.0
R3.5-10	10.5	15.0
R3.5-12	13.0	19.0
R5.5-3S	3.7	7.2	1.0	12-10	4-6
R5.5-4S	4.3	7.2
R5.5-4	4.3	9.5
R5.5-5	5.3	9.5
R5.5-6	6.4	12.0
R5.5-8	8.4	15.0
R5.5-10	10.5	15.0
R5.5-12	13.0	19.0
R8-4NK	4.3	9.0	1.2	8	10
R8-5NK	5.3	9.0
R8-4S	4.3	9.0
R8-4	4.3	12.0
R8-5S	5.3	9.0
R8-5	5.3	12.0
R8-6	6.4	12.0
R8-6L	6.4	15.0
R8-8	8.4	15.0
R8-10	10.5	15.0
R8-12	13.0	19.0	1.2	8	10
R8-14	15.0	30.0
R8-16	17.0	30.0
R8-20	21.0	30.0
R14-4	4.3	12.0	1.5	6	16
R14-5S	5.3	9.5
R14-5	5.3	12.0
R14-6	6.4	12.0
R14-8	8.4	16.0
R14-10	10.5	16.0
R14-11	11.5	22.0
R14-12	13.0	22.0
R14-14	15.0	30.0
R14-16	17.0	30.0
R14-20	21.0	30.0
R22-5S	5.3	12.0	1.8	4	25
R22-6S	6.4	12.0
R22-8S	8.4	12.0
R22-5	5.3	16.5
R22-6	6.4	16.5
R22-8	8.4	16.5
R22-10S	10.5	16.5
R22-10	10.5	17.5
R22-12	13.0	22.0
R22-14	15.0	30.0
R22-16	17.0	30.0
R22-18	19.0	30.0
R22-20	21.0	30.0
R38-5S	5.3	15.3	1.8	2	35
R38-6S	6.4	15.3
R38-8S	8.4	15.3
R38-10S	10.5	15.3
R38-6	6.4	22.0
R38-8	8.4	22.0
R38-10	10.5	22.0
R38-12	13.0	22.0
R38-14	15.0	30.0
R38-16	17.0	30.0
R38-18	19.0	30.0
R38-20	21.0	30.0
R60-6	6.4	22.0	2.0	1/0	50
R60-8	8.4
R60-10	10.5
R60-11	11.5
R60-12	13.0
R60-14	15.0	32.0	2.0	1/0	50
R60-16	17.0
R60-18	19.0
R60-20	21.0
R60-22	23.0

型號	Ød2	B	T	AWG	DINmm²
R70-6	6.4	24.0	2.0	2/0	70
R70-8	8.4
R70-10	10.5
R70-11	11.5
R70-12	13.0
R70-14	15.0	32.0	2.0	2/0	70
R70-16	17.0
R70-18	19.0
R70-20	21.0
R70-22	23.0
R80-6	6.4	27.0	2.3	3/0	95
R80-8	8.4
R80-10	10.5
R80-12	13.0
R80-8L	8.4	32.0	2.3	3/0	95
R80-10L	10.5
R80-12L	13.0
R80-14	15.0
R80-16	17.0
R80-18	19.0
R80-20	21.0
R80-22	23.0
R100-6	6.4	28.5	2.6	4/0	120
R100-8	8.4
R100-10	10.5
R100-11	11.5
R100-12	13.0
R100-8L	8.4	32.0	2.6	4/0	120
R100-10L	10.5
R100-12L	13.0
R100-14	15.0
R100-16	17.0
R100-18	19.0
R100-20	21.0
R100-22	23.0
R150-6	6.4	36.0	3.2	250-300 mcm	150
R150-8	8.4
R150-10	10.5
R150-12	13.0
R150-14	15.0
R150-16	17.0
R150-8L	8.4
R150-10L	10.5
R150-12L	13.0
R150-16L	17.0
R150-18	19.0
R150-20	21.0
R150-22	23.0
R150-24	25.0
R180-8	8.4	38.5	3.5	300-350 mcm	185
R180-10	10.5
R180-12	13.0
R180-14	15.0
R180-16	17.0
R180-8L	8.4
R180-10L	10.5
R180-12L	13.0
R180-16L	17.0
R180-18	19.0
R180-20	21.0
R180-22	23.0
R180-24	25.0
R180-27	28.0
R200-8	8.4	44.0	4.0	400-450 mcm	240
R200-10	10.5
R200-11	11.5
R200-12	13.0
R200-14	15.0
R200-16	17.0
R200-8L	8.4
R200-10L	10.5
R200-12L	13.0
R200-14L	15.0
R200-16L	17.0
R200-18	19.0
R200-20	21.0
R200-22	23.0
R200-24	25.0
R200-27	28.0
R325-8	8.4	50.0	4.5	500-600 mcm	300
R325-10	10.5
R325-12	13.0
R325-14	15.0
R325-16	17.0
R325-8L	8.4
R325-10L	10.5
R325-12L	13.0
R325-14L	15.0
R325-16L	17.0
R325-18	19.0
R325-20	21.0
R325-22	23.0
R325-24	25.0
R325-27	28.0
