父分類名稱

TWPA 鐵製防水開關箱

父分類連結 TWPA 鐵製防水開關箱 父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤

開關箱 TMB-304020 300*400*200 1.2T 直/鍍鋅底板

16C104446C104446C104446C104446
數量標準單價出貨日
- - -
- - -

規格

歡迎登入官方會員，點擊右上方附件下載完整型錄

開關箱配電箱尺寸圖

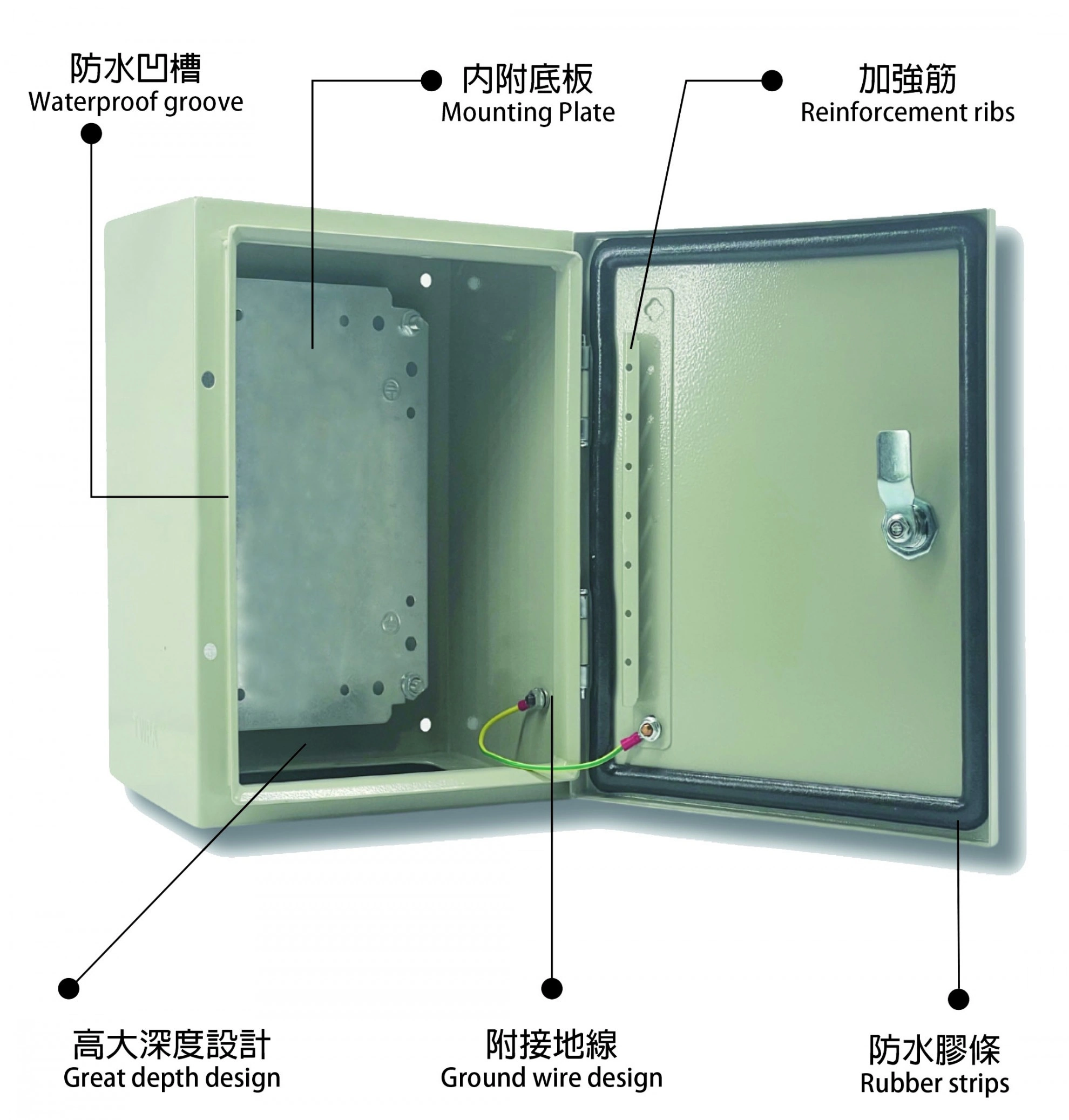

TMB鐵製防水開關箱特性
  • 材質:碳鋼及鍍鋅鋼
  • 用途:適用於控制和管理各種電氣設備和系統
  • 特長:
  1. 高深度高容量
  2. 左右門板可交換
  3. 附接地線，安全不觸電
  4. 加強筋設計，門板不彎曲

    Material: Steel sheet body,galvanized mounting plate
    Purpose: Suitable for controlling and managing various
                       electrical equipment and systems
    Features:
  •  Great depth and high capacity
  •  The left and right door panels are interchangeable
  • Ground wire design
  •  Reinforcement ribs design
TMB鐵製防水開關箱型號規格尺寸表

型號Product Number外部尺寸External Size底板尺寸Mounting Plate Size厚度Thickness(mm)烤漆顏色
Color		附底板
Mounting Plate
寬度Width(W1)
(mm)		高度Height(H1)
(mm)		深度Depth(D1)
(mm)		寬度Width(W2)
(mm)		高度Height(H2)
(mm)		箱體Body 門板Door 底板
Mounting Plate
TMB-2020152002001501501501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-2030152003001501502501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-2030202003002001502501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-2530152503001502002501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-2530202503002002002501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-3020153002001502501501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-3020203002002002501501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-3025153002501502502001.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-3025203002502002502001.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-3030153003001502502501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-3030203003002002502501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-3040153004001502503501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-3040203004002002503501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-4030154003001503502501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-4030204003002003502501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-4040204004002003503501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-4050204005002003504501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-5040205004002004503501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-4060204006002003505501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-5060205006002004505501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-5060305006003004505501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-5070205007002004506501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-5070255007002504506501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-6040206004002005503501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-6050206005002005504501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-6050306005003005504501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-6080206008002005507501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-6080256008002505507501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-6080306008003005507501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-601003060010003005509501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-7050207005002006504501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-7050257005002506504501.21.21.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-8060208006002007505501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-8060258006002507505501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-8060308006003007505501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-801003080010003007509501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-8012030800120030075011501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-100603010006003009505501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-100803010008003009507501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
TMB-1208030120080030011507501.51.51.5深灰色RAL7032鍍鋅底板Zine Plate
