| 廠牌 | CALY佳力 |
|---|---|
| 適用線徑範圍(DINmm2/AWG) | 0.5-1.0/22-18 |
| 螺絲孔徑 | 4.3mm |
| 寬度 | 7.2mm |
| 產品認證 |
關閉
父分類名稱 ![佳力Y型端子]( "佳力Y型端子")
父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤
佳力Y型端子
父分類連結
父分類簡述 父分類簡述(下方) 父分類內容 父分類標籤 Y型端子 Y1.25-4

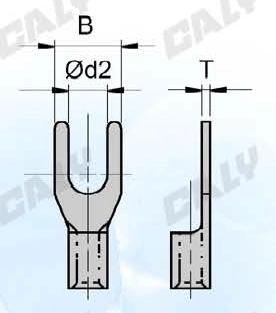

規格圖
規格表
| 型號 | Ød2 | B | T | AWG | DINmm² |
| Y1.25-3S | 3.7 | 5.7 | 0.8 | 22-18 | 0.5-1.0 |
| Y1.25-3 | 3.7 | 6.2 | |||
| Y1.25-4S | 4.3 | 6.4 | |||
| Y1.25-4 | 4.3 | 7.2 | |||
| Y1.25-5 | 5.3 | 8.0 | |||
| Y1.25-6 | 6.4 | 10.7 | |||
| Y2-3S | 3.7 | 5.7 | 0.8 | 16-14 | 1.5-2.5 |
| Y2-3 | 3.7 | 6.2 | |||
| Y2-4S | 4.3 | 6.4 | |||
| Y2-4 | 4.3 | 7.2 | |||
| Y2-5 | 5.3 | 8.0 | |||
| Y2-6 | 6.4 | 10.7 | |||
| Y3.5-3S | 3.7 | 6.4 | 1.0 | 14-12 | 2.5-4.0 |
| Y3.5-3 | 3.7 | 7.4 | |||
| Y3.5-4S | 4.3 | 7.0 | |||
| Y3.5-4 | 4.3 | 8.0 | |||
| Y3.5-5 | 5.3 | 8.0 | |||
| Y3.5-6 | 6.4 | 10.8 | |||
| Y5.5-3S | 3.7 | 7.2 | 1.0 | 12-10 | 4.0-6.0 |
| Y5.5-3 | 3.7 | 8.2 | |||
| Y5.5-4S | 4.3 | 7.2 | |||
| Y5.5-4 | 4.3 | 8.2 | |||
| Y5.5-5 | 5.3 | 9.0 | |||
| Y5.5-6 | 6.4 | 10.8 | |||
| Y8-4 | 4.3 | 8.2 | 1.2 | 8 | 10 |
| Y8-5 | 5.3 | 9.0 | |||
| Y8-6 | 6.4 | 12.0 | |||
| Y14-4 | 4.3 | 9.1 | 1.5 | 6 | 16 |
| Y14-5 | 5.3 | 12.0 | |||
| Y14-6 | 6.4 | 12.0 | |||
| Y22-4S | 4.3 | 9.1 | 1.8 | 4 | 25 |
| Y22-4 | 4.3 | 12.0 | |||
| Y22-5 | 5.3 | 12.0 | |||
| Y22-6 | 6.4 | 13.0 | |||
| Y22-8 | 8.4 | 15.0 |
